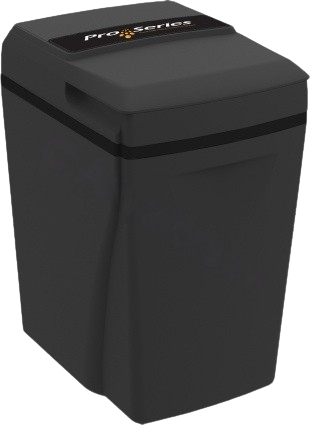

WaterBoss 2300 Iron remover and water softener
WaterBoss 2300 is a universal system that combines a mechanical self-cleaning filter, an iron remover and a water softener. Thanks to the technological features of the system, WaterBoss outperforms conventional water softeners in all key areas.
Specifications:
| Overall Height-mm (inch) | 640 (25) |
| Inlet/Outlet height-mm(inch) | 585 (23) |
| Depth-mm (inch) | 480 (19) |
| Depth including Connections-mm (inch) | 502 (20) |
| Width-mm (inch) | 380 (15) |
| Overflow Height-mm (inch) | 465 (18) |
| Width including Connections-mm (inch) | 380 (15) |
| Media Volume-L | 20 |
| Maximum Feed Water Hardness-mg/L | 1.200 |
| Maximum Ferrous Iron-mg/L | 10 |
| Minimum pH (standard units) | 7 |
| Salt Usage per regeneration | Variable based on water demand |
| Water use per regeneration-L | 53 |
| Capacity (maximum at 300 mg/L)-L | 4900 |
| Minimum/Maximum Water Pressure-bar | 1.4/8.3 |
| Working Pressure (Maximum daytime) | 5 |
| Minimum Pressure | 1.4 |
| Minimum/Maximum water and ambient temperature - °C | 4/49 |
| Flow Rate at 1 bar p-L/min | 45 |
| Peak Flow Rate-L/min | 80 |
| In/Out Connection Size | 1-inch Threaded |
| Waste Connection Size | 16-mm Barbed |
| Overflow Connection Size | 13-mm Barbed |
| Power Requirement | 220 VAC, 50 Hz |
| Salt type | Tablet |
| Salt storage-kg | 40 (88) |
| Shipping weight-approximate-kg | 39 (85) |
| In/Out Pipes Supplied | Pair 3/4-inch Bore 1-inch to 3/4-inch Female Megaflow Super Water Flex. Stainless steel hoses 600 mm long |
| Waste Pipe Supplied | Semi-rigid 13 mm x 1200 mm |
| O/F Pipe Supplied | Flexible 16 mm x 2400 mm |
