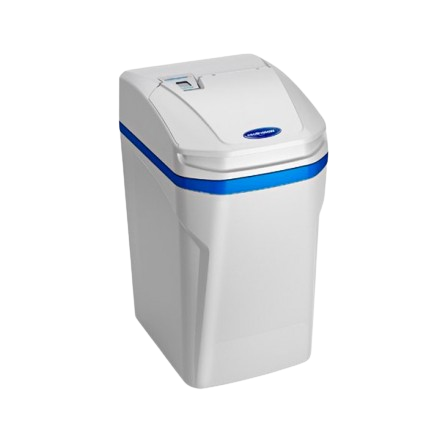

WaterBoss PRO 380P1 Iron remover and water softener.
.png)
WaterBoss PRO 380P1 is a universal unit that combines a mechanical self-cleaning filter, iron remover and water softener. Thanks to the technological features of the system, WaterBoss Pro 380P1 is superior to conventional water softeners in all key indicators.
Ion exchange resin
WaterBoss softeners use a monodisperse ion exchange resin with a granule diameter of about 0.2 mm. The “narrow” fractional composition in combination with the small size of the granules makes it possible to obtain a sorption (ion exchange) medium with very low hydrodynamic resistance and high kinetics of the ion exchange reaction. The use of such an ion exchange resin in “conventional bulk columns” is impossible, since standard “slots” at the inlet and outlet of the column have a slot size of 0.5 mm.
(2).png)

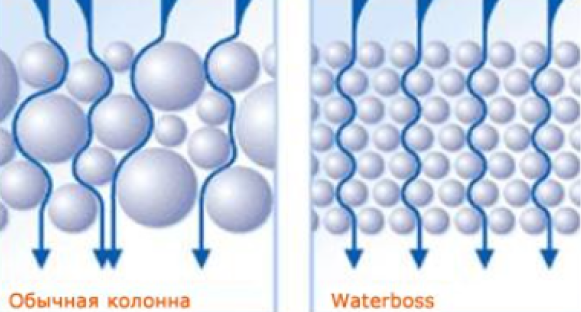

Water leakage in resin. Standard columns (left) and Waterboss (right).
Specifications
Max water temperature: 49 °C
Height, cm: 84.8
Pressure in the water supply system is not less than, atm: 1.4
Pressure in the water supply system, no more than, atm: 8.3
Working capacity, m3/h: 1.86
Maximum productivity, m3/h: 3.18
Max. compensated hardness, mEq/l: 34
Max. content of iron and manganese ions in water, mg/l: 10
Amount of salt per regeneration, kg: 2.7 - 4.5
Regeneration duration, min: 39-48
Amount of water per regeneration, l: 96 - 112
Electrical characteristics: 12 VAC, 1 phase 50 Hz
Base area: 42x51 cm
Salt reserve, kg: 78
